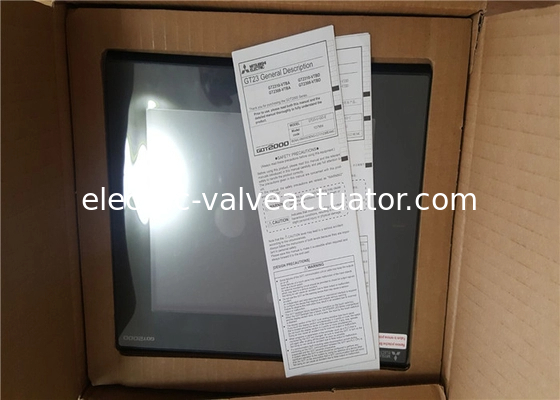

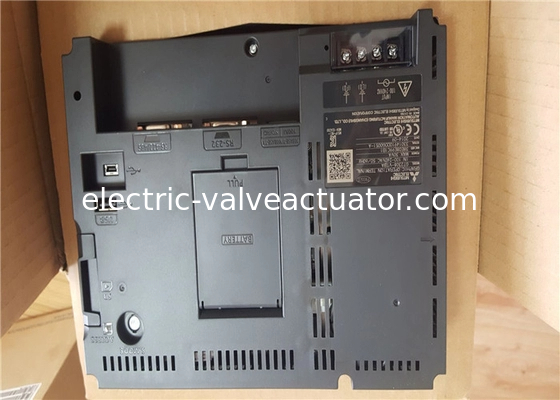

GT2308-VTBA 8.4 INCH VGA COLOR TOUCHSCREEN Mitsubishi Electric HMI Touch Screen

Name: GT2308-VTBA 8.4 INCH VGA COLOR TOUCHSCREEN Mitsubishi Electric HMI Touch Screen
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: GT2308-VTBA
Price: 285.00 USD
Availability: InStock

Marchio:	Mitsubishi
Numero di modello:	GT2308-VTBA
MOQ:	1
prezzo:	Negoziabile
Condizioni di pagamento:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Capacità di approvvigionamento:	Disponibile

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

Giappone

Certificazione:

Imballaggi particolari:

Nuova scatola originale

Capacità di alimentazione:

Disponibile

Descrizione del prodotto

Detailed Product Description

Brand:	Mitsubishi	Model Item:	GT2308-VTBA
Plan Of Original:	Japan	Screen Size:	8.4"
Internal Memory:	38MB	Resolution:	800 X 600pixels
Supply Voltage:	100-240VAC	Power Supply:	24 V Dc
Keyboard::	Touch Screen
Highlight:	industrial hmi panels , hmi touch panel

GT2308-VTBA 8.4 INCH VGA COLOR TOUCHSCREEN Mitsubishi Electric HMI Touch Screen

Product Details

GT23 8.4 INCH VGA COLOR TOUCHSCREEN AC (GT2308VTBA)
Manufacturer: Mitsubishi
Series: GOT2000
Product name HMI GT2308-VTBDB Mitsubishi
24 VDC power supply
Size 8.4 "VGA 640x480px
GT softGOT2000 software Version 1, GT works3
Mitsubishi - Japan manufacturer

**Quick Detail**
Condition	New
Weight (kg)	1.5
Our Part Number	GT2308VTBA
Height (mm)	194
Width (mm)	241
Depth (mm)	52
Manufacturer	Mitsubishi
Manufacturer Range	GOT
Manufacturer Series	GOT 2000
Supply Voltage	100-240 VAC
IP Rating	IP67
IP Rating Back	IP20
Display Colour	65536
Display Resolution	640 x 480
Display Size	8.4"
Display Type	TFT
Backlighting	Yes
Internal Memory (Mb)	9
Keyboard Type	Touch Screen

Quick Detail

Screen size:	8.4"
Display type:	TFT colour LCD
Display dimensions:	w170.9 x h128.2mm
Graphical resolution:	640 x 480 pixels
Power supply:	100-240V a.c.
Interface:	RS422, RS232, Ethernet, USB and SD card
Overall dimensions:	w241 x h194 x d56mm

Features:

Built-in Ethernet, RS232 & RS422/485
SD memory card slot
Operator authentication and logging
Wide choice of drivers for Mitsubishi and other manufacturers controllers
All versions have 65K colour screens
Oil resistant protective sheets available

GT23 model

Model		Screen size	Display section Display color	Panel color	Power	Remarks
GT2310	GT2310-VTBA	10.4" VGA	TFT color 65536 colors	Black	100 to 240 V AC	-
GT2310	GT2310-VTBD	10.4" VGA		Black	24 V DC	-
GT2308	GT2308-VTBA	8.4" VGA		Black	100 to 240 V AC	-
GT2308	GT2308-VTBD	8.4" VGA		Black	24 V DC	-
