Luogo di origine: | La Cina |
Marca: | DYLINK |
Numero di modello: | SW1801D |
Quantità di ordine minimo: | 1 insieme |
---|---|
Imballaggi particolari: | Imballaggio della scatola di legno |
Tempi di consegna: | 15 giorni dopo la firma del contratto |
Termini di pagamento: | T/T |
Capacità di alimentazione: | 1000sets |
Specifiche: | SW1801D | Collegamenti del computer: | 8 |
---|---|---|---|
Connettori ospite: | femmina di 8x DVI; tipo femmina di 8x USB di B | Risoluzioni massime di Digital: | x 1920 1200@60Hz |
TemperatureRange di funzionamento: | -40 ~ +55°C | alimentazione elettrica: | DC12V/1A |
Dimensioni (W x H x D): | 438mm x 153mm x 44.5mm | ||
Evidenziare: | Commutatore femminile di DVI KVM,8 commutatore del porto DVI KVM,Commutatore del supporto di scaffale di DVI KVM |

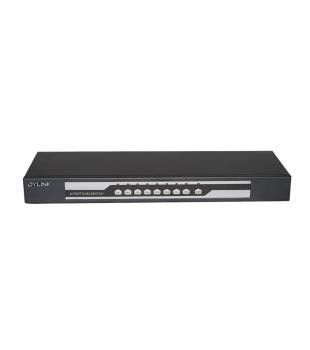

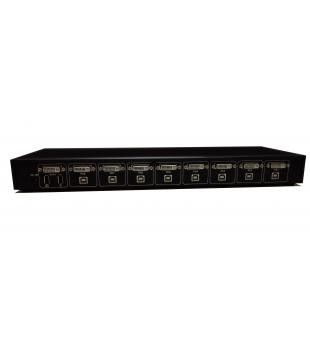

Description: The DYLINK® SW1801D 8 Port DVI KVM Switch allows quick switch between 8 computers from a single USB keyboard and mouse. The SW1801D setup is easy,simply plug the cables into their appropriate ports . There is no software to configure, no installations, and no incompatibility issues. In addition, the SW1801D allowing it to work on multiple OS platforms including:Windows, Linux, and Mac.
Features
■ Share keyboard, mouse, and DVI display between eight DVI-equipped computers
■ Full plug-and-play support with USB keyboards and mouses.
■ Supports a maximum resolution of 1920x1200@60Hz
■ Hotkey and push-button switching
■ OS independent - No driver or software required
■ Supports DDC2B for monitor detection
■ Multiplatform support :Windows, Linux and Mac
■ HP,DELL,IBM mouse and keyboard compatable
Package Includes
• 1 x DVI KVM Switcher
• 1 x Power Adapter
• 1 x User’s Manual
Specifications
Specifications | SW1801D |
Computer Connections | 8 |
Host Connectors | 8x DVI Female;8x USB Type B female; |
Console Interfaces |
1x DVI Female; 2x USB Type A female; |
DVI Specification | V1.0 |
Maximum Digital Resolutions | 1920 x 1200@60Hz |
LED Indicators | 8 |
Port Selection | Push Button and Hotkeys |
Power Supply | DC12V/1A |
Operating TemperatureRange | -40 ~ +55°C |
Dimensions(W x H x D) | 438mm X 153mm X 44.5mm |
This product is also named as DVI Switch,or DVI KVM Switch,or DVI USB KVM Switch,and so on.
