Siemens 7ML1118-0BA30 Ultrasonic Liquid Level Sensor

Product Features:

Digital input to receive signals from point-level sensors as a backup

Built-in Modbus RTU RS-485 digital communication interface

Can be configured using the SmartLinx system and SIMATIC PDM configuration software

Single-point or dual-point level detection

Automatic suppression of false echoes for fixed interference targets

Differential amplifier circuit effectively suppresses common-mode interference, improving signal-to-noise ratio

MultiRanger 100: Level measurement, simple pump control, and level alarm functionality

MultiRanger 200: Level, volume, open-channel measurement, differential level measurement, pump control, and alarm functionality

Available in wall-mount and panel-mount options

MultiRanger 200 HMI has an easy-to-use HMI display with four tactile buttons, menu-driven parameters, and wizard support

Easily accessible removable terminal block for wiring

7ML1118-0BA30 Ultrasonic Level Transmitter for Sludge Interface Instrument Applications: The MultiRanger can measure various media, including fuel oil, municipal wastewater, acids, alkalis, or other corrosive and toxic substances. The MultiRanger provides dual-point level measurement with a built-in Modbus® RTU RS-485 digital communication interface. The SIMATIC PDM software can be used to configure and set the device on a PC. The intelligent echo processing software enhances measurement reliability.

MultiRanger 100 provides level alarms, on/off control, and pump control, making it an economical solution.

MultiRanger 200 can monitor open-channel flow, relay alarms, pump control, and volume conversion functionality. It works with the corrosion-resistant Echomax ultrasonic sensors and can be used in demanding applications, with an operating temperature up to 145°C.

Main Applications: Well water, water tanks, weir and grid control, chemical storage tanks, and liquid storage tanks.

Design: MultiRanger is available in wall-mounted and panel-mounted options.

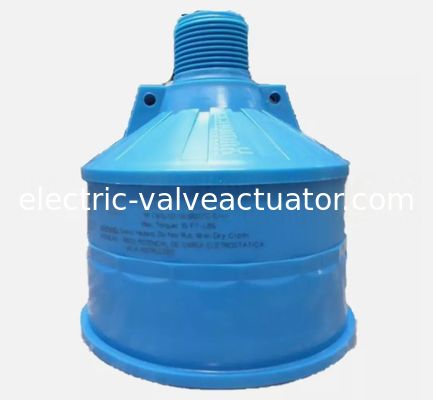

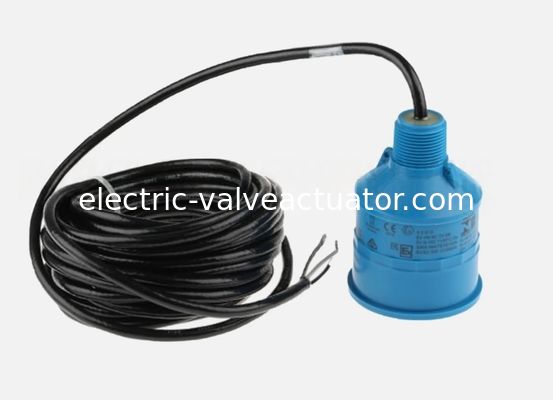

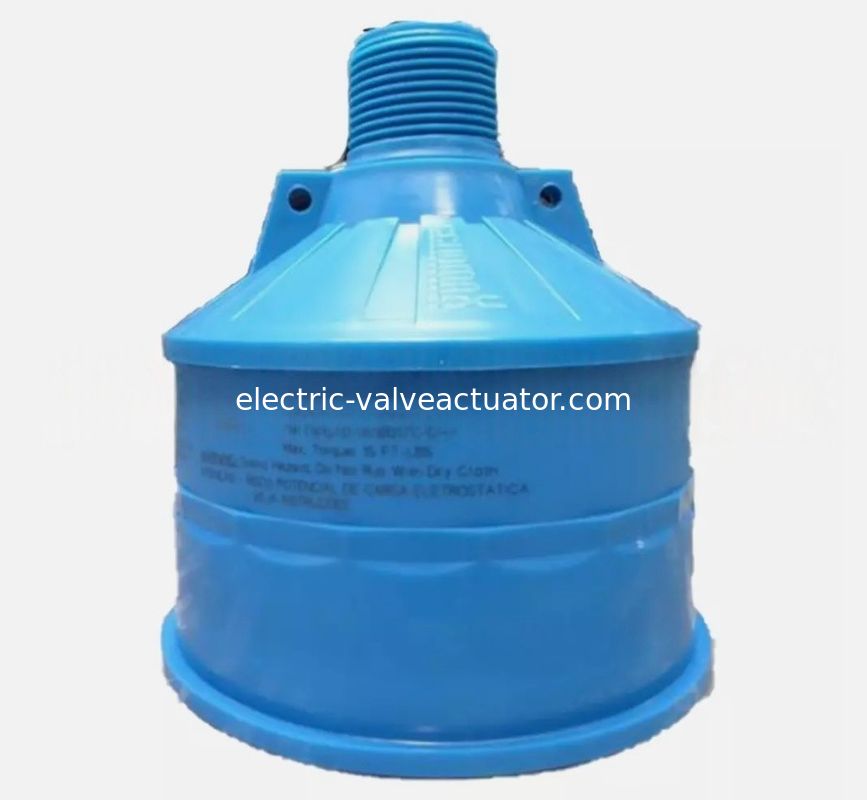

Echomax XPS Ultrasonic Sensor Applications:
Echomax ultrasonic technology monitors liquid and slurry level variations, with a wide range of applications.

Product Features:

Built-in temperature compensation

Low residual vibration technology ensures a small blind zone

Acoustic impedance matching technology is used for applications involving slight dust

Self-cleaning and low maintenance cost

Resistant to chemical corrosion

Integrated design ensures air-tightness

Applications: The sensor can be installed inside process vessels, suitable for applications with steam and harsh chemical corrosion, and can be installed without flanges.

The XPS series has a monitoring range of up to 30 meters, with an operating temperature up to 95°C. During operation, the Echomax ultrasonic sensor emits sound pulses with a narrow beam vertically to its surface. The level transmitter calculates the distance by measuring the time difference between the transmitted pulse and its echo.

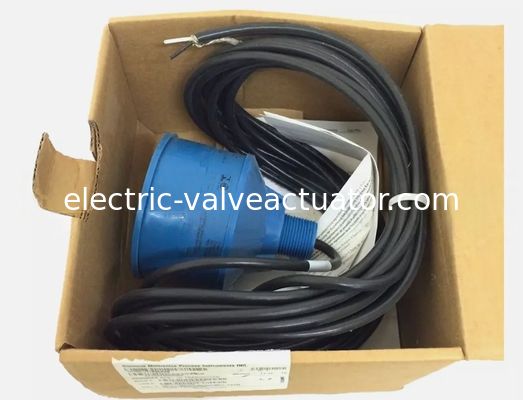

Siemens Sludge Interface Instrument includes: transmitter, sensor, mounting bracket, and handheld controller.
