GT1675M-VTBD Mitsubishi GOT1000 Panel Operator Interface Touch HMI Touch Screen

Name: GT1675M-VTBD Mitsubishi GOT1000 Panel Operator Interface Touch HMI Touch Screen
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: GT1675M-VTBD
Price: 285.00 USD
Availability: InStock

Marchio:	Mitsubishi
Numero di modello:	GT1675M-VTBD
MOQ:	1
prezzo:	Negoziabile
Condizioni di pagamento:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Capacità di approvvigionamento:	Disponibile

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

Giappone

Certificazione:

Imballaggi particolari:

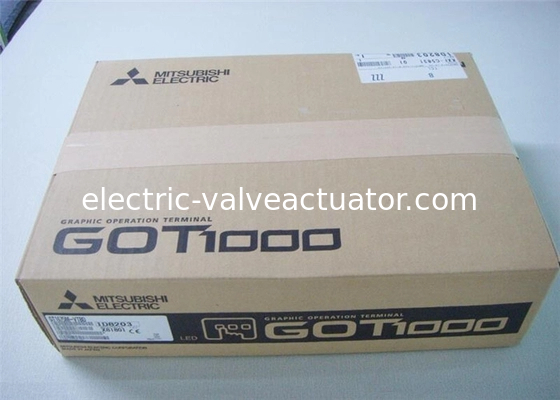

Nuova scatola originale

Capacità di alimentazione:

Disponibile

Evidenziare:

Mitsubishi Touch Screen HMI

Mitsubishi Touch HMI

GT1675M-VTBD Mitsubishi HMI

Descrizione del prodotto

Detailed Product Description

Brand:	Mitsubishi	Model Item:	GT1675M-VTBD
Plan Of Original:	Japan	Screen Size:	12.1 Type
Resolution:	SVGA: 800 X 600 [dot]	Display Size:	246 (W) X 184.5 (H) [mm]
Operating Ambient Temperature:	0 To 55 ° C	Storage Ambient Temperature:	-20 ° C To 60 ° C
Highlight:	hmi display touch screen , industrial hmi panels

GT1675M-VTBD Mitsubishi GOT1000 Panel Operator Interface Touch HMI Touch Screen

Specifications


Display unit	type	8.4", TFT, 65536 colours	10.4", TFT, 65536 colours	12.1", TFT, 65536 colours	15", TFT, 65536 colours
Display unit	resolution (pixel)	STB _: 800x600 VTB_: 640x480		800x 600	1024x 768
Power supply	A types	100–240 V AC
Power supply	D types	24 V DC
Memory capacity		15 MB			15 MB (expandable up to 57 MB)
Memory card		1 (CompactFlash)
Keyboard type		Touch-panel
Function keys		Touch keys
LED indicators		1 (POWER)
Interfaces		Ethernet (TCP/IP), RS232, RS422/485, USB, CF Slot
Multimedia capability		Optional
Real-time clock		Integrated
Network communication possibilities		Ethernet (TCP/IP), CC-Link (IE), Modbus®, RS232, RS422/485, A bus, Q bus, MELSECNET/10/H
Extension interface (communication/option unit)		1 port (max.5 units/4 channels)
IP rating ( front )		IP67 ¹

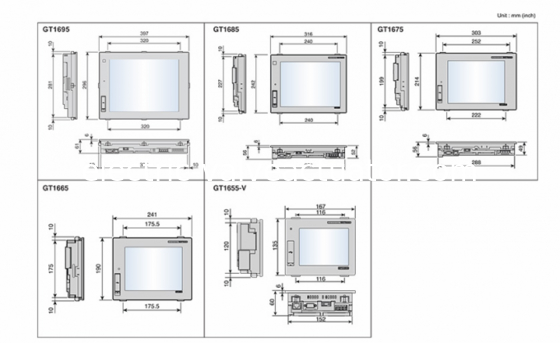

Dimensions (WxHxD) mm		241x190x52	303x214x49	316x242x52	397x296x61
Weight kg		1.7	2.1	2.7	5.0
Order information Art. no.		221949 221950 221951 221952	221945 221946 221947 221948	221360 221361	221358 221359

Accessories		Programming software, cables and interface adapters.
