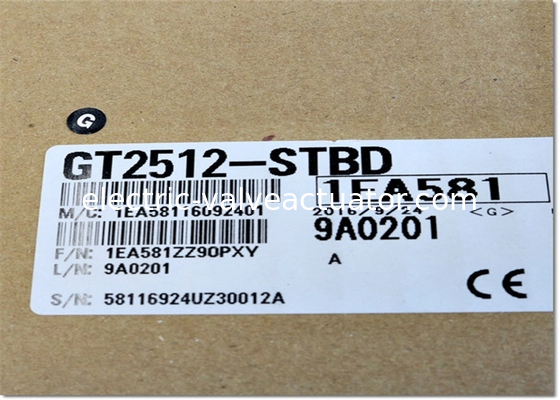

GT2512-STBD Mitsubishi GOT2000 12" TFT LCD Touch-Screen HMI 800 x 600pixels

Name: GT2512-STBD Mitsubishi GOT2000 12" TFT LCD Touch-Screen HMI 800 x 600pixels
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: GT2512-STBD
Price: 210.00 USD
Availability: InStock

Marchio:	Mitsubishi
Numero di modello:	GT2512-STBD
MOQ:	1
prezzo:	Negoziabile
Condizioni di pagamento:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Capacità di approvvigionamento:	Disponibile

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

Giappone

Certificazione:

Imballaggi particolari:

Nuova scatola originale

Capacità di alimentazione:

Disponibile

Evidenziare:

800 x 600pixels GT2512-STBD

GT2512-STBD Touch Screen

GT2512-STBD Mitsubishi

Descrizione del prodotto

Detailed Product Description

Brand:	Mitsubishi	Model Item:	GT2512-STBD
Plan Of Original:	Japan	Screen Size:	8.4"
Overview:	5.7 Type VGA [640 × 480]	Resolution:	800 X 600pixels
Supply Voltage:	100-240VAC	Power Supply:	24 V Dc
Classification : Medium Size:	4.7 ~ 7 Type
Highlight:	hmi display touch screen , industrial hmi panels

GT2512-STBD Mitsubishi GOT2000 12" TFT LCD Touch-Screen HMI 800 x 600pixels

Detailed Product Description

Screen size:	12.1"
Display type:	TFT colour LCD
Display dimensions:	w246 x h184.5mm
Graphical resolution:	800 x 600 pixels
Power supply:	24V d.c.
Interface:	RS422/485, RS232, Ethernet (TCP/IP), USB (front) and SD card
Overall dimensions:	w316 x h246 x d52mm

Features:

Built-in Ethernet, RS232 & RS422/485
SD memory card slot
Operator authentication and logging
Wide choice of drivers for Mitsubishi and other manufacturers controllers
All versions have 65K colour screens
Oil resistant protective sheets available

Specifications of Mitsubishi HMI GT2512-STBD

Type TOUCH PANEL

Power Supply (V) 24

Current Type DC

Display TFT

Display Colour 65536

Display Size (Inch) 12,1

Resolution (Pixels) 800X600

Internal Memory Capacity (MB) 80

Memory Card Slot SD

USB 3

Ethernet 1

RS-232 1

RS-422/485 1

RS-422 N/A

Network Options MODBUS,CCLINK,M'NET,ETH,BUS

Slot for Optional Cards YES

Protection Class IP67F

PRODUCT DIMENSIONS WEIGHT

Width (mm) 316

Height (mm) 246

Depth (mm) 52

Weight (kg) 2,4

GT25 model

Model		Screen size	Display section Display color	Panel color	Power	Remarks
GT2512	GT2512-STBA	12.1" SVGA	TFT color 65536 colors	Black	100 to 240 V AC	-
	GT2512-STBD			Black	24 V DC	-
	GT2512F-STNA			-	100 to 240 V AC	Open frame model
	GT2512F-STND			-	24 V DC	Open frame model
GT2510	GT2510-VTBA	10.4" VGA		Black	100 to 240 V AC	-
	GT2510-VTBD			Black	24 V DC
	GT2510-VTWA			White	100 to 240 V AC
	GT2510-VTWD			White	24 V DC
	GT2510F-VTNA			-	100 to 240 V AC	Open frame model
	GT2510F-VTND			-	24 V DC	Open frame model
GT2508	GT2508-VTBA	8.4" VGA		Black	100 to 240 V AC	-
	GT2508-VTBD			Black	24 V DC
	GT2508-VTWA			White	100 to 240 V AC
	GT2508-VTWD			White	24 V DC
	GT2508F-VTNA			-	100 to 240 V AC	Open frame model
	GT2508F-VTND			-	24 V DC	Open frame model
GT2505	GT2505-VTBD	5.7" VGA		Black	24 V DC	-
