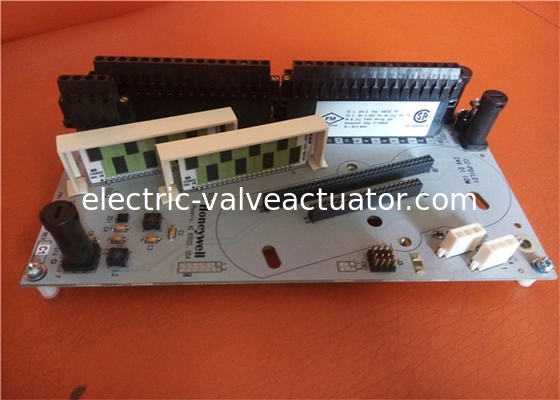

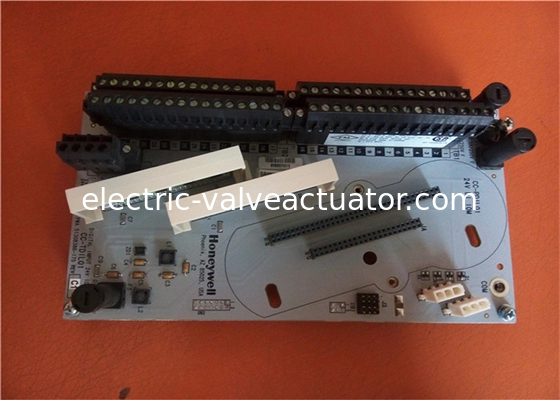

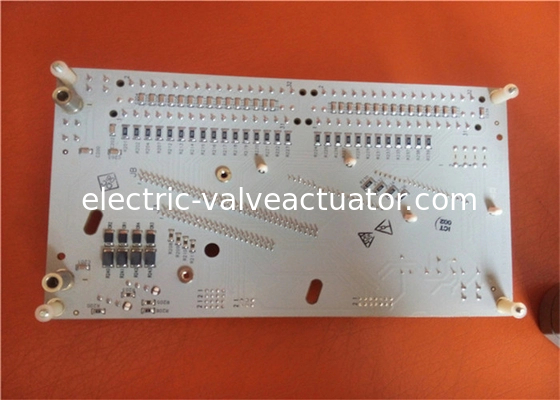

24V 32-Channel Control Circuit Board 160W CC-TDIL01

Name: 24V 32-Channel Control Circuit Board 160W CC-TDIL01
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: CC-TDIL01
Price: 210.00 USD
Availability: InStock

Marchio:	Honeywell
Numero di modello:	CC-TDIL01
MOQ:	1
prezzo:	Negotiations

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Place of Origin:

USA

Tpye:

Circuit Card

Volatge:

24V

Input Channels:

Power:

160W

Packaging Details:

New original box

Evidenziare:

24V 32-channel control board

160W low voltage circuit board

32-channel protection control device

Descrizione del prodotto

24V Circuit Control Board 32 Input Channels 160W Power CC-TDIL01

Product Specifications

Attribute	Value
Type	Circuit Card
Voltage	24V
Input Channels	32
Power	160W

Product Description

Control Circuit Board Honeywell MEASUREX 24V CC-TDIL01 circuit card 51308386-175

Technical Details

Manufacturer's Declared Parameters: Input/Output Model CC-PDIL01 - 24Volt Digital Input
CU-PDIL01: 24Volt Digital Input
IOTA Models: CC-TDIL01, CU-TDIL01 (Non Redundant 6")
CC-TDIL11, CU-TDIL11: Redundant 12"
Input Channels: 32
Galvanic Isolation: 1500 VAC RMS or ±1500 VDC
Isolation Technique: Optical (in IOM)
DI Power Voltage Range: 18 to 30 VDC
ON Sense Voltage/Current: 13 VDC (min) or 3 mA (min)
OFF Sense Voltage/Current: 5 VDC (max) or 1.2 mA (max)
Input Impedance: 4.2 KΩ
Absolute Delay Across Input Filter and Isolation: 5 ms ± 20%
Field Resistance for Guaranteed ON Condition: 300 Ωmax @ 15 VDC
Field Resistance for Guaranteed OFF Condition: 30 KΩmin @ 30 VDC
