Sistema di accensione di rendimento elevato

Boiler ignition system Φ18 Ignition Gun Spark Gap Rigid Rod Spark Rod spark gap

Marchio:	OEM
Numero di modello:	XDZ-1
MOQ:	1 insieme
Condizioni di pagamento:	T/T
Capacità di approvvigionamento:	200

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

Cina

Voltaggio:

2500V

Energia:

20J

Frequenza di scintilla:

12-14 volte /S

Dimensioni del telaio:

300*200*120

Filo:

M18*1,0 M18*1,5 M27*1.5

Temperatura:

1300 ℃

Asta dia:

Φ12、Φ16、Φ18

Imballaggi particolari:

Imballo in legno

Capacità di alimentazione:

200

Evidenziare:

boiler ignition system Φ18 spark gap

ignition gun rigid rod spark

high performance ignition system spark rod

Descrizione del prodotto

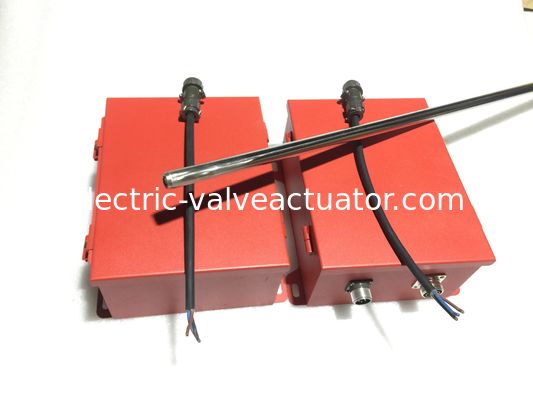

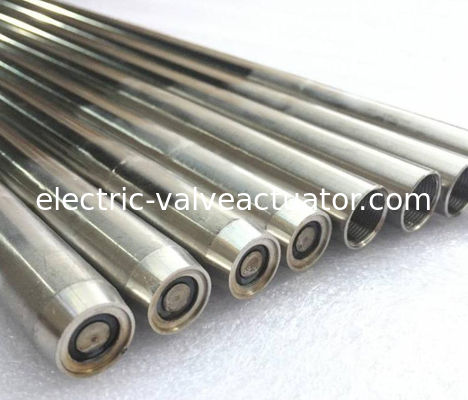

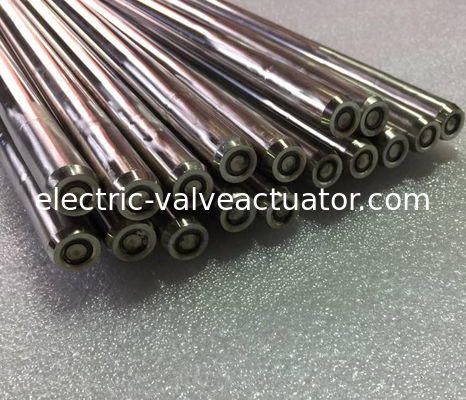

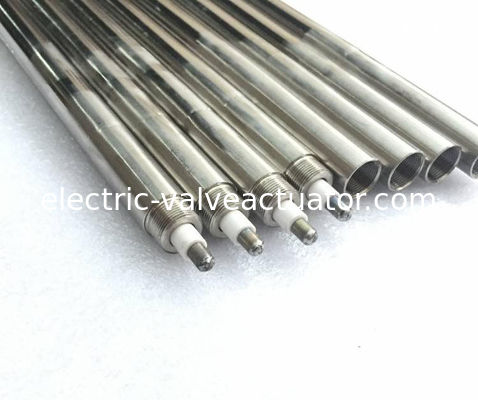

Boiler Ignition System Φ18 Ignition Gun

This high-energy ignition system features a spark gap rigid rod spark rod designed for reliable boiler ignition applications.

Applications

Boiler ignition system

Product Overview

This ignition system utilizes DC voltage input from ignition cables to discharge high-energy electric sparks at the forming head, providing reliable ignition for industrial boiler systems.

Technical Advantages

Low ignition voltage
Excellent temperature resistance
Safety and reliability with strong pollution resistance

Product Series

Model	Description
XDH-1G	High pressure gap ignitor
XDH-2Z	DC charging portable ignition
XDH-6B	Explosion-proof high-energy ignition
XDH-6L	Portable high-energy ignition
XDH-12T	Portable high-energy ignition
XDH-20B	Explosion-proof high-energy ignition
XDH-20C	High-energy ignition
XDH-20L	High-energy ignition
XDH-50	High-energy ignition

Custom designs available to meet specific user requirements beyond standard product series.

Performance Parameters

Parameter	Unit	6 Series	XDH-20 Series	XDH-50
Energy Storage	J	2	10 \| 20	50
Working Voltage	V	DC12	AC220	AC220
Output Voltage	VDC	2500±5%
Spark Frequency	Times/sec	1-3	2-10 Adjustable	2-10 Adjustable
Duty Cycle (On/Off)	S	30/60	120/60	120/60
